| LogPlot - Design borehole logs with the Log Designer |
 |
| |
- The new and improved interface makes creating your design templates easier than ever before
- Access the design screen from the main LogPlot 7 menu
- Pick from the existing library of designs or create one of your own
- Use point-click-drag, cut-copy-paste, and multiple-select capabilities for easy placement, movement, and editing of the design items
- Snap-to-grid tools help with log design
- Separate log body, log header, and log footer design areas
- 10 log header and footer tools
- 18 log body tools
|
Log Designer interface |
|
| |
| Log Headers and Footers |
- Log headers and footers can be just about any size you wish
- Include changing and non-changing text, using any font and color
- Text entities now have left, center, right, top, and bottom alignment, with transparent or opaque backgrounds
- Text "notes" allow long, wrap-able text paragraphs
- Include BMP, JPG, PNG, TIFF, WMF, EMF, PCX, TGA logos or pictures
- Plot symbol and pattern samples
- Include lines and rectangles of varying thickness, styles, colors, and fills
- Include automatic page numbers
- Each template can store up to two headers and two footers, as well as a full page Report that can be printed at the beginning of the log
- Include curve and bargraph column legends, linked to show names, data ranges and colors/linestyles
|
A log with detailed header and footer |
|
| |
| Log Headers and Footers |
- Display soil/rock type patterns and "keywords" plus any extended descriptions in any font, color, and style. Turn on/off automatic offset, divider lines, keywords, extended descriptions, and more
- Display interbedded layers in the pattern column
|
Log Designer interface |
|
| |
- Show cuttings percentages of up to 20 components
- Plot general comments and text entries as wrappable text with any font, style, and color, with alignment and margins
- Plot vertical text intervals for age/formation names
- Label depths or elevation with scale bars. Include either or both English and metric units. Display true elevation for deviated boreholes.
- Include vector and raster symbols for representation of water level, drill stem tests, sample intervals, etc.
|
Metric and English depth bar; vertical text |
|
| |
- Illustrate quantitative data as curves, with variable line styles, fills, symbols, wrapping, reference grid, automatic legends, and cross-plot fills, linear or logarithmic scaling. Scale curves automatically to data, and change scaling for any user-specified depth range(s).
|
Curve styles in LogPlot |
|
| |
- Display quantitative data as bar graphs with variable colors, fills, and automatic value labels, with linear or logarithmic scaling. Scale bar graphs automatically to data
- Show sampling intervals filled with vertical bars
|

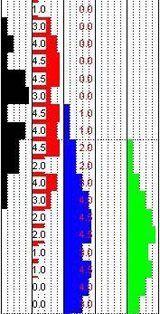

Bar histograms in LogPlot |
|
| |
- Detailed well construction diagrams for single or multiple borings, now with linked keyword and caption display
|
Boring log well construction diagram |
|
| |
- Insert bitmaps to illustrate core samples, fossils, etc.
|
Bitmaps displayed in the log body |
|
| |
- Display dipmeter readings with Tadpole symbols indicating direction and dip angle.
s |
Geophysical log tadpole plot |
|
| |
|
| |
|
|
|
